Stress Recovery

talorrr · January 25, 2026, 5:58pm

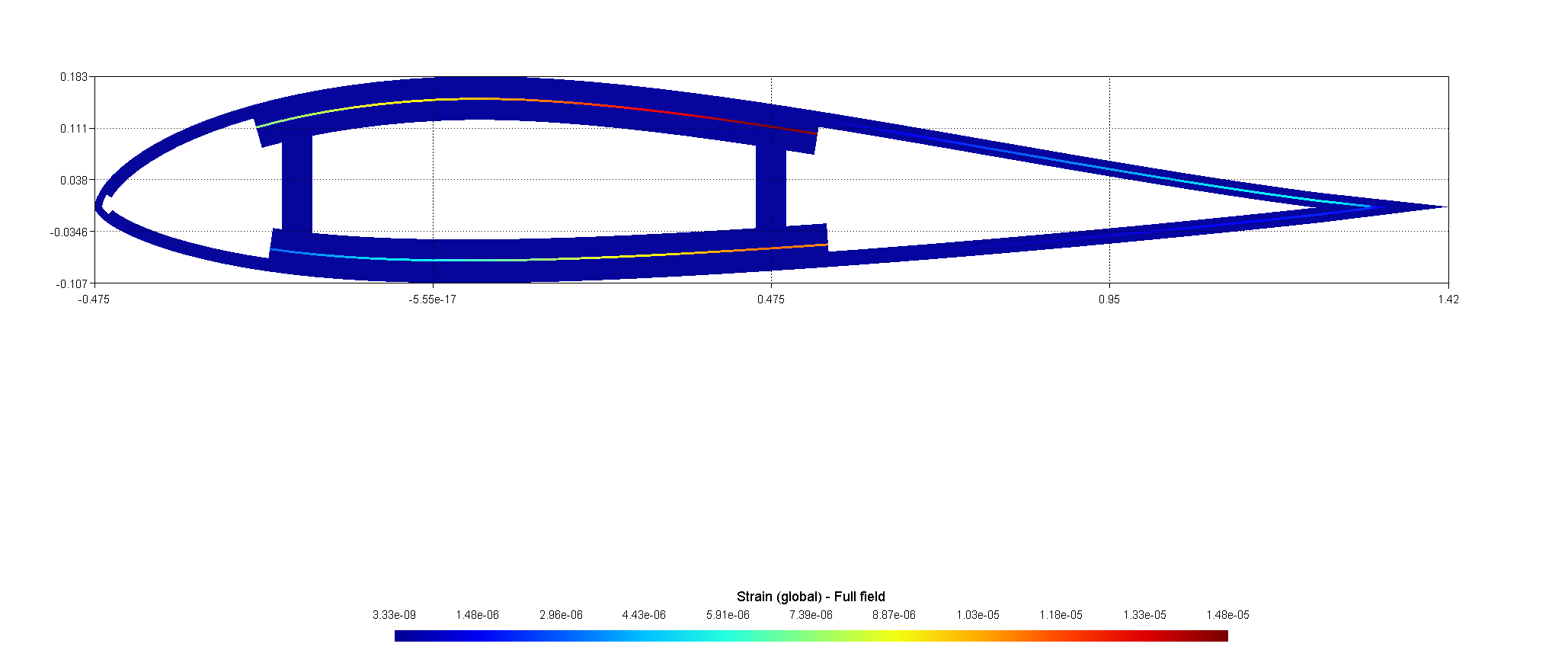

Good morning/afternoon, teachers. During the stress recovery process, I observed that the strain exhibits a significant gradient along the thickness direction of the airfoil, which normally should not occur.

talorrr · January 25, 2026, 6:00pm

翻译：这是应变梯度很大区域放大图

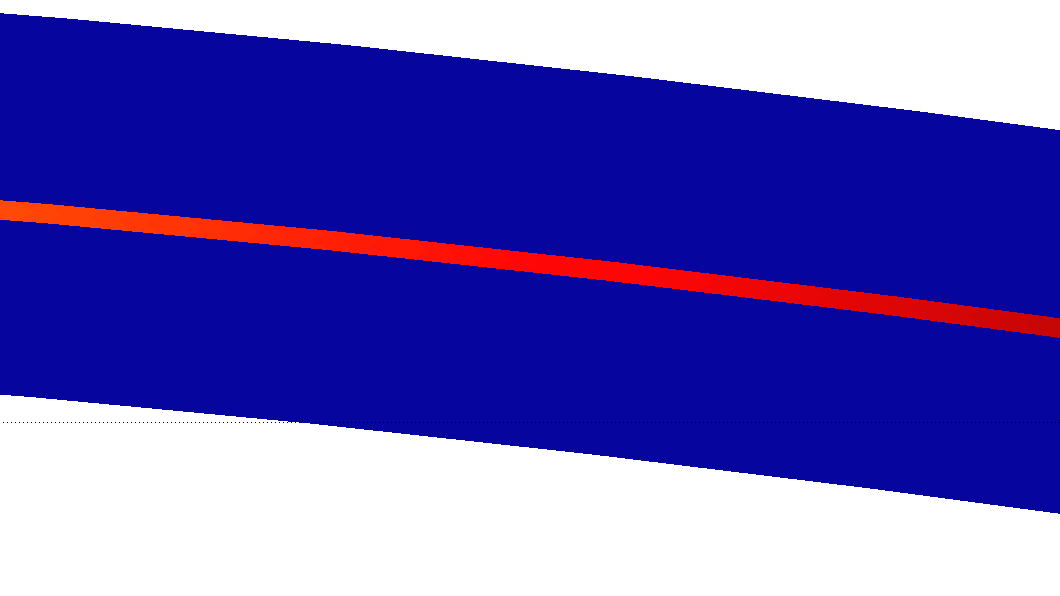

This is an enlarged view of the area with a significant strain gradient.

Wenbin · January 25, 2026, 8:43pm

@su.tian.22 can you take a look at this?

su.tian.22 · January 26, 2026, 11:33pm

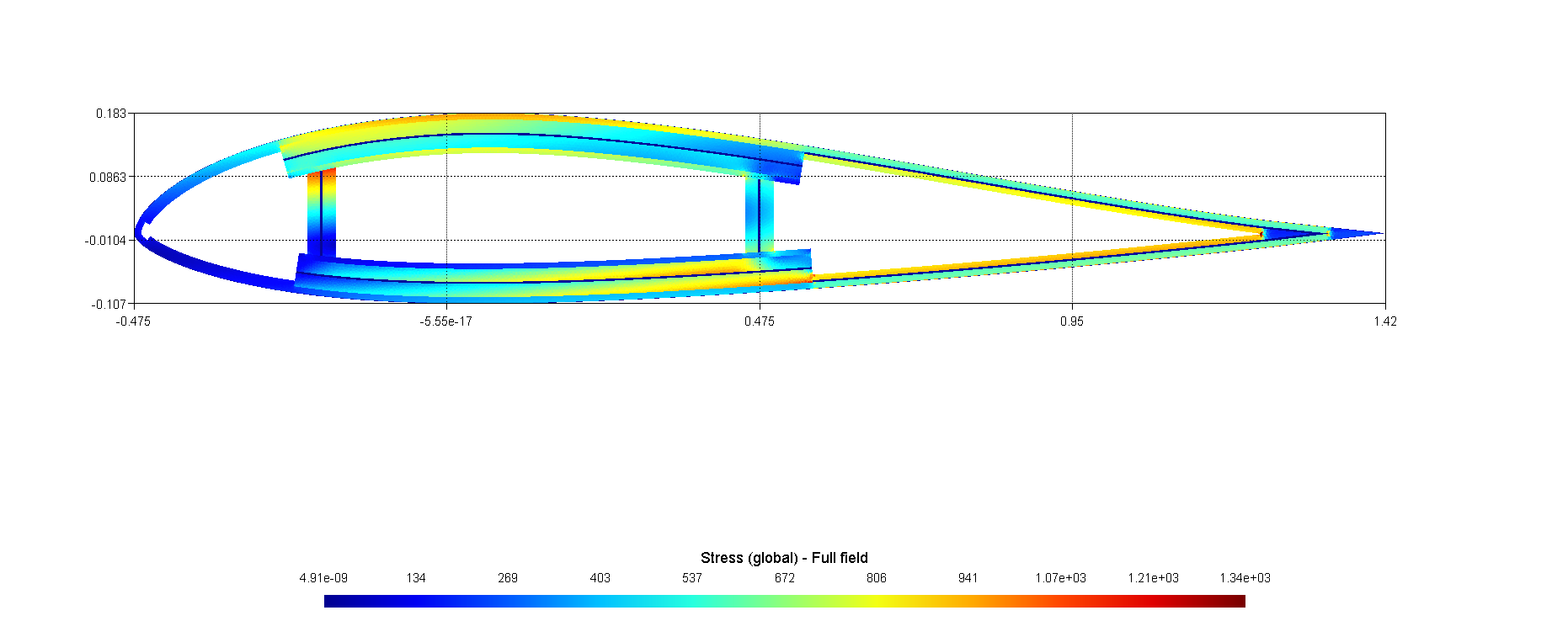

The plot you attached here is for stress, not strain. You can go to the left panel of gmsh to switch between different stress/strain components.

talorrr · January 30, 2026, 2:25am

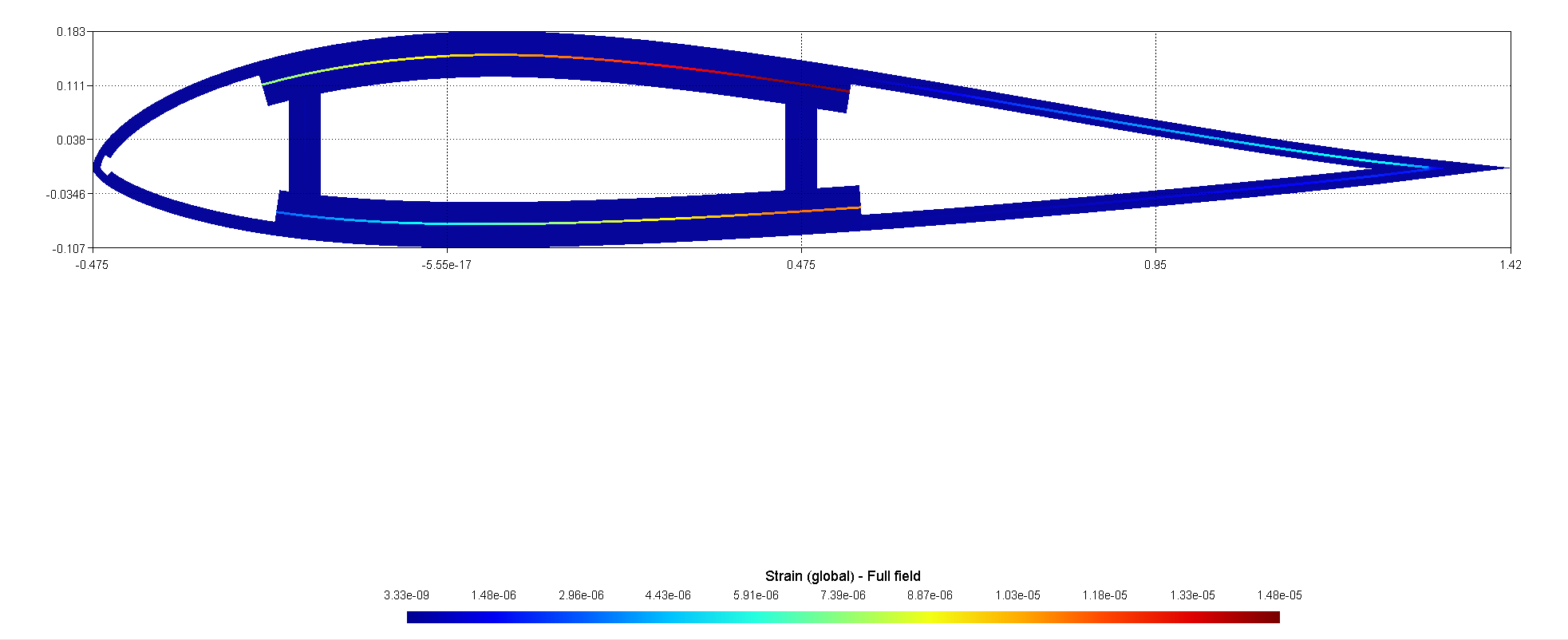

I am very sorry, I made a mistake. This should be the graph corresponding to strain.

talorrr · January 30, 2026, 2:33am

This is the strain distribution diagram for the various local regions of the airfoil.

talorrr · January 30, 2026, 3:37am

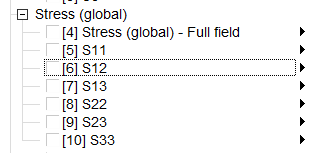

Additionally, I would also like to ask what directions these stresses represent.

su.tian.22 · February 4, 2026, 4:48am

What are the versions of PreVABS and VABS you are using?

su.tian.22 · February 4, 2026, 4:51am

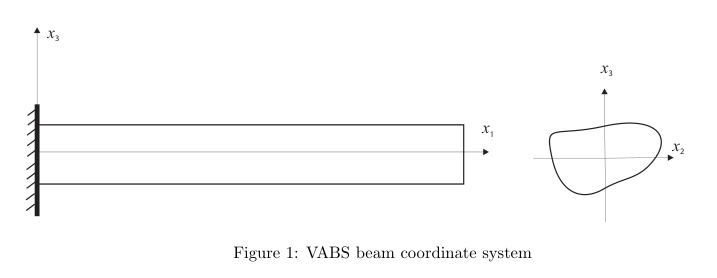

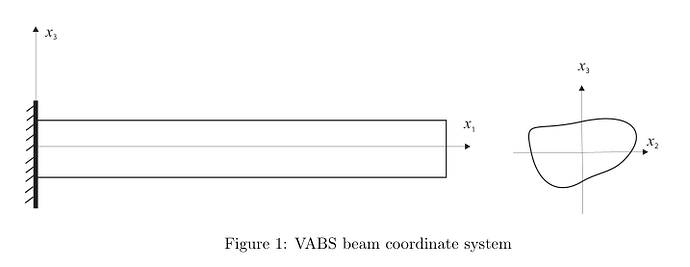

You can check the manual for more details.
