Gmsh display issue

Modeling & Simulation VABS
1

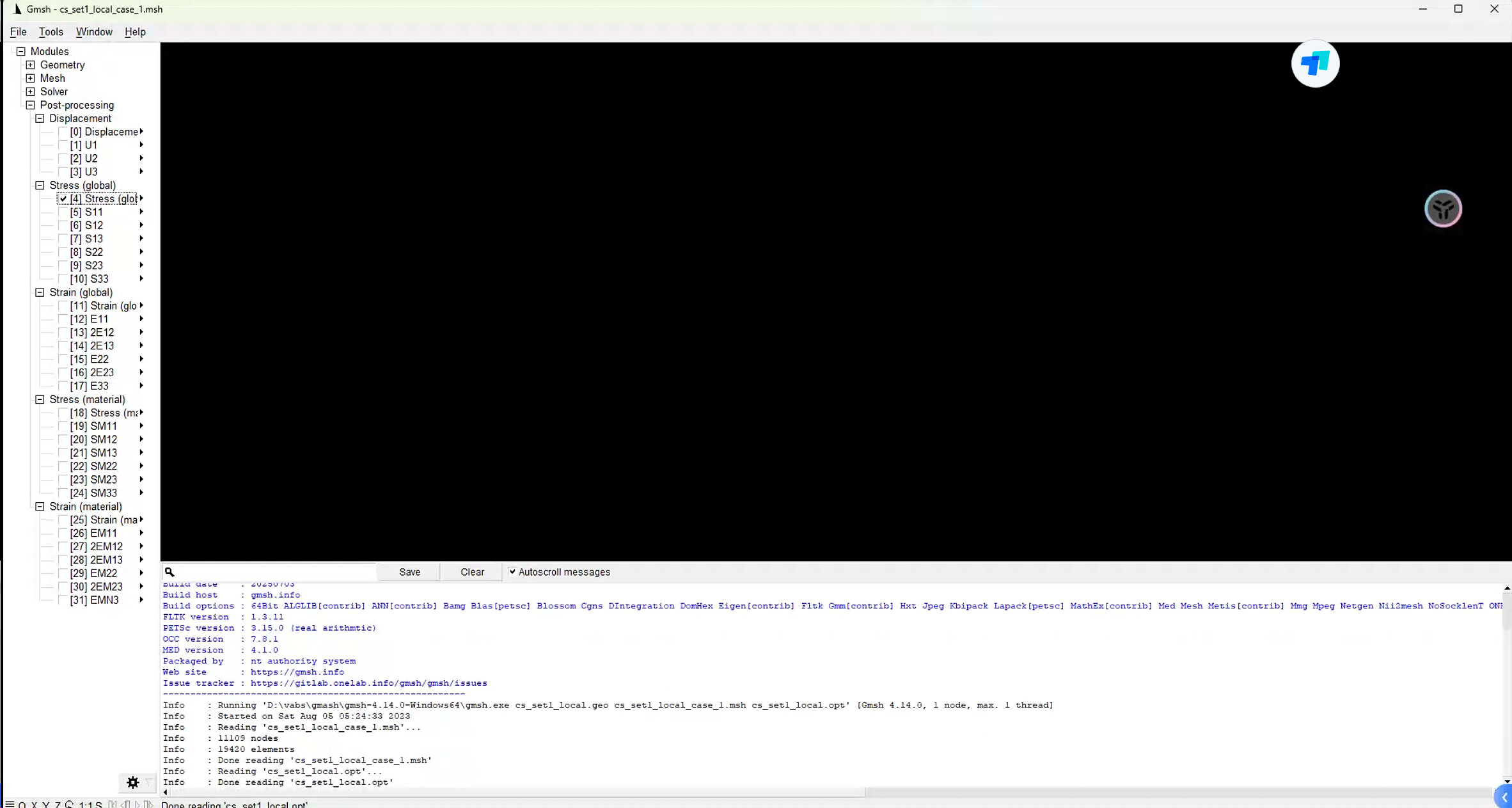

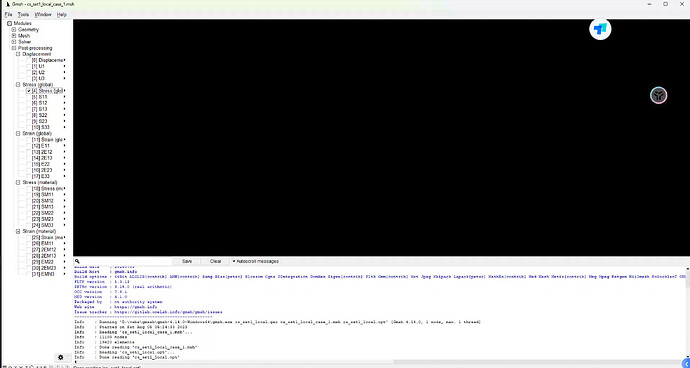

When I generate the stress recovery image, it doesn’t display in GMSH, but the calculation case ran successfully. As shown in the figure:

4976cf4a16f5bdc05a3f9335d13d7ba5
4976cf4a16f5bdc05a3f9335d13d7ba52364×1263 258 KB

2

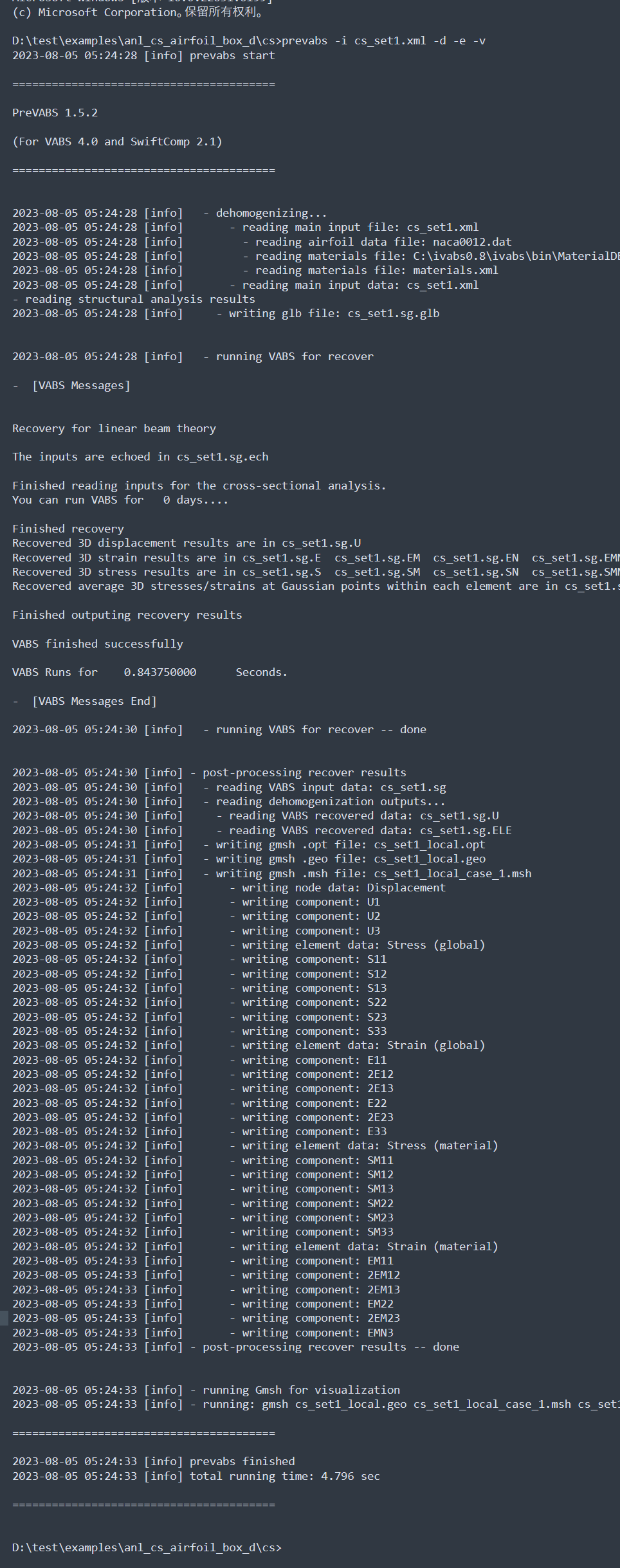

This is the program’s command execution window:

image964×2438 364 KB

3

I’ve never seen this issue. Can you try to close this window and use gmsh cs_set1_local_case_1.msh to open it again?
