A simple example that walks through running PreVABS/VABS in batch mode to compute Timoshenko beam properties across a large set of airfoil cross-sections — useful if you’re doing parametric or trade studies on composite slender structures (blades, wings, etc.).
What it covers:
-
Starting from standard Selig-format airfoil coordinate files (UIUC database)
-
Reusing a single PreVABS XML template across different materials and layup configurations (aluminum skin, CFRP at 0° and 45°)
-
Post-processing VABS output with
sgioto extract a configurable list of section properties (mu,ea,gj,ei22,ei33, coupling terms, etc.) into a flat CSV -

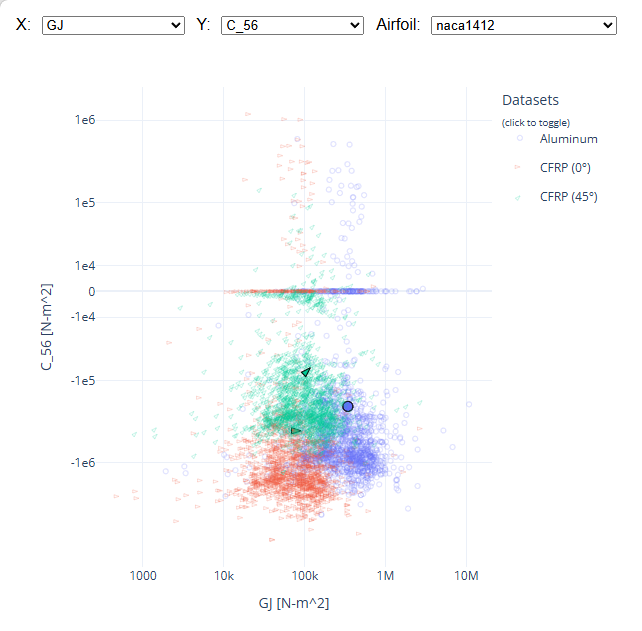

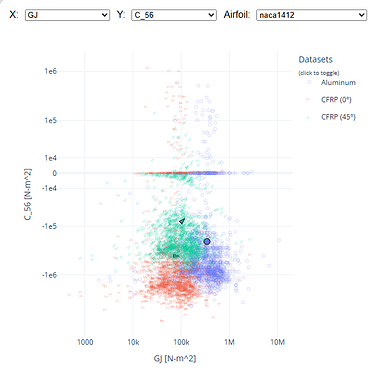

An interactive plot (dropdowns for x/y properties, airfoil highlighting, toggleable legend) to browse results across all 1600+ cases
Config is JSON-based, with concurrency control, sampling, and a continue/stop failure policy for batch runs.
The shared template only exposes a handful of placeholders (airfoil geometry, LE/TE points, material, layup), so the same batch-driver pattern extends readily to other cross-sectional designs — see the PreVABS documentation for the full set of supported geometry and layup options.
